1. 4G (LTE) – Cat 4 Max 150Mbps (DL)/Max 50Mbps (UL)

2. 2 x Ethernet port (1 x WAN/LAN + 1 x LAN)

3. Extra interfaces: 1 x RS 232/RS 485, 2 x GPIO

4. 2 x SIM, auto switch over

5. Support WIFI 802.11b/g/n

6. Support OpenVPN, Ipsec, GRE, PPTP, L2TP, Stunnel for security data transmission.

7. Support Modbus, MQTT, HTTP and other IOT protocols.

8. Optional RTC circuit.

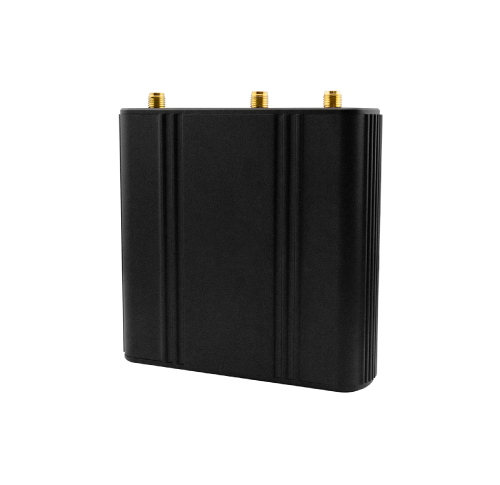

WR100LNA is Queclink’s first industrial router. With high-speed cellular connectivity up to 150Mbps (LTE CAT4) and an industrial serial port interface, WR100LNA provides a platform for data-intensive IoT applications such as industrial automation, smart city, transportation and retail. With Queclink’s unique technology, the product can be installed in vehicles and used alongside our existing range of tracking products to offer a reliable connectivity environment.

Ceres::Template.singleItemTechnicalDataAttribute	Ceres::Template.singleItemTechnicalDataValue
Identificación de artículo	103631
Estado
ID de artículo histórico
Modelo	WR100 LNA
Fabricante	Queclink
País de origen
Contenido	1 undefined
Peso	500 g

Specifications

Connectivity

Mobile	LTE CAT4 WCDMA
	Operating Band LTE Cat 4: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5
	Data Transmission LTE: LTE FDD: max 150Mbps (DL)/max 50Mbps (UL) UMTS: DC-HSDPA: max 42Mbps (DL) HSUPA: max 5.76Mbps (UL) WCDMA: max 384Kbps (DL)/max 384Kbps (UL)
WiFi	IEEE 802.11 a/b/g/n, 2.4 GHz Up to 144Mbps for 20MHz and 300Mbps for 40MHz data rates
Ethernet	1 x FE (WAN/LAN), can be confgured as WAN or LAN port through software. 1 x FE (LAN)
Network Protocol	TCP/ UDP/ PPP/ NTP/ NITZ/ FTP/ FTPS / HTTP/ HTTPS/ PING/ CMUX /FILE/ MQTT/ MMS/ SMTP/ SSL/

System Characteristics

RAM	128MB,DDR2
FLASH storage	16MB,SPI Flash

Interfaces

Ethernet Ports	1 WAN/LAN(10/100Mbps) 1 LAN(10/100Mbps)
Serial Port	1 serial port (RS485 or RS232 on demand)
SIM Slots	2
Mobile Antennas	2x SMA
WiFi Antennas	1x RP-SMA
Power Sockets	4 pin
LED Indicators	Power, Mobile Status, Mobile Signal Strength, WiFi
Reset Button	1

General Specifications

Dimensions	90mm x 90mm x 24mm
Weight	200g
Operating Voltage	8 – 32V DC
Operating Temperature	-30℃ to + 70℃ -40℃ to + 80℃ for storage

Security

Firewall	IP/MAC Filter, Domain Filter, NAT
Attack Prevention	DDOS, DMZ,port scan
WiFi Security	WPA-PSK, WPA2-PSK, AES
Access Control	Data connection per scan. Mac address filter.

VPN

Open VPN	Clients and server support
IPsec	Support
GRE	Support
PPTP,L2TP	Clients and server support

Software

Operating System	Linux based OpenWrt OS
Network Backup Alternative Link	Mobile, Wire,WiFi,Primary and backup link configured as requirement,auto load balance
Network Features	NAT, Static/Dynamic routing(Rip Protocol), Firewall
Connection Monitoring	Ping Reboot, Scheduled Reboot
Remote Management	WEB UI, SSH, SMS, RMS, FOTA
