1. LTE CAT 1 with 2G Fallback
2. Solar Charging
3. Up to 10-year standby time
4. Waterproof, compliant to IP67
5. Supports BLE 5.0
6. Supports WiFi positioning
7. Ideal for container, trailer and rail wagons tracking applications

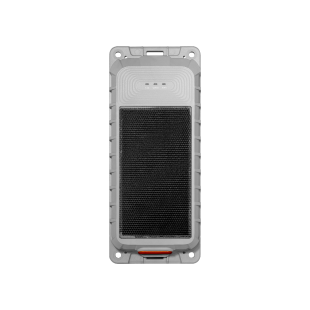

The GL601CAU is a rugged, self-sustaining LTE CAT 1 with 2G fallback tracker, ideal for efficient management of containers, trailers, and rail wagons. With its advanced solar harvesting technology, it can operate with zero maintenance for up to 10 years. The built-in rechargeable large battery supports multimodal operation based on transportation needs, ensuring real-time tracking during movement or low-frequency reporting when stationary. Utilizing LTE Cat1 technology eliminates concerns about network coverage for inter-regional transportation. Additionally, it features a light sensor for tamper alerts, a temperature sensor for ambient condition monitoring, and offers extended functionalities with BLE and Wi-Fi connectivity.

Ceres::Template.singleItemTechnicalDataAttribute	Ceres::Template.singleItemTechnicalDataValue
Identificación de artículo	103629
Estado
ID de artículo histórico
Modelo	GL601CAU
Fabricante	Queclink
País de origen
Contenido	1 undefined
Peso	500 g

Specifications

LTE Specifications

Operating Band

LTE Cat1

LTE-FDD:B2/B3/B4/B5/B7/B8/B28/B66

GSM Specifications

Operating Band

B2/B3/B5/B8

GNSS Specifications

GNSS Type	All-in-one multi-constellation GNSS Receiver
Constellation Support	GPS, BEIDOU, GLONASS,GALILEO, AGPS
Position Accuracy (m@CEP50)	Autonomous: < 2.5m

General Specifications

Dimensions	212(L) × 86(W) × 30(H) mm 8.35(L) × 3.39(W) × 1.18(H) inch
Weight	572g (20.2oz)
Internal Battery	6 x ICR18500 lithium batteries, 3.7V,12000mAh
Standby Time	Continuous Mode: 1 report/minute(2 Working hours per day): 80 days Sleeping Mode: 1 report/hour: 5 months 1 report/day: 5 years 1 report/day(need to be solar charged regularly): 10 years
Waterproof	IP67
Operating Temperature	-20 °C~+70 °C (-4 °F~+158 °F)
Mounting	Screw / Magnet Mounting Additional secure steel cable
Region	LATAM
Certificate	FCC (Planning)

Interfaces

Charging Port	4-pin magnetic connector for charging and configure / FW upgrade
Cellular Antenna	Internal only
GNSS Antenna	Internal only
BLE Antenna	Internal only
WiFi Antenna	Internal only
LED Indicators	GNSS, CEL, PWR

Air Interface Protocol

Transmit Protocol	TCP, UDP, SMS
Scheduled Timing Report	Report messages at preset time intervals
Geo-Fences	Automatically reports when entering / exiting Geo-Fence
Low Power Alarm	Alarm when internal battery is low
Battery Health	Report battery condition (%) / status
Temperature Monitoring	Report environment temperature at preset time intervals
Tamper Detection	Alarm when device is removed
OTA Control	Remote configure parameters to change position interval, measurement interval, active/ deactivate sensor, upgrade FW
