Product Description

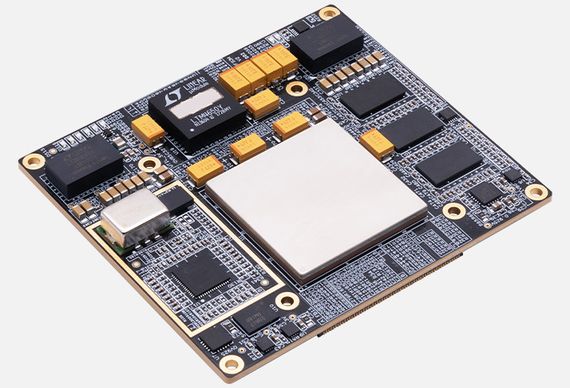

The ACW47 System-on-Module (SoM) integrates AMD/Xilinx Zynq UltraScale+ RFSoC XCZU47DR with high-speed DDR4 SDRAM, dual parallel 1Gbit Quad-SPI Flash, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.
Applications
● 5G RF and baseband
● phased array system
● Radar system
● Software radio
● Spectrum monitoring
Key Features
- ● AMD/Xilinx Zynq Ultrascale+ RFSoC:
◆ ARM® quad-core Cortex-A53 up to 1.333GHz
◆ ARM® dual-core Cortex-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric

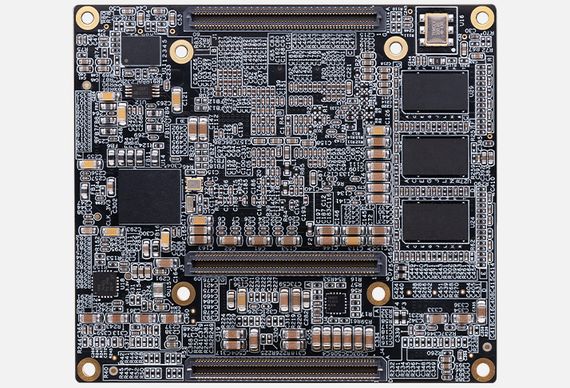

◆ Digital RF-ADC, RF-DAC● Pluggable module with 3 x 240Pin board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 256MB QSPI Flash - ● Gigabit transceivers◆ 8 x PL GTY, up to 28.21 Gbps
◆ 4 x PS-GTR, up to 6 Gbps● 8 x 14bit ADC, up to 5GSPS
● 8 x 14bit DAC, up to 9.85GSPS
● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 90x80.5mm form factor
What's Inside the Box
ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU47DR System-on-Module/SoM
| RFSoC SoM | 1 | Heatsink Kit | 1 |
|---|---|---|---|
| Data USB flash drive | 1 |
| Technical characteristic | Value |
|---|---|
| Item ID | 102892 |
| Condition | New |
| Model | ACW47 |
| Manufacturer | Alinx Electronic Limited |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 1000 g |
| Customs tariff number | 8471800000 |

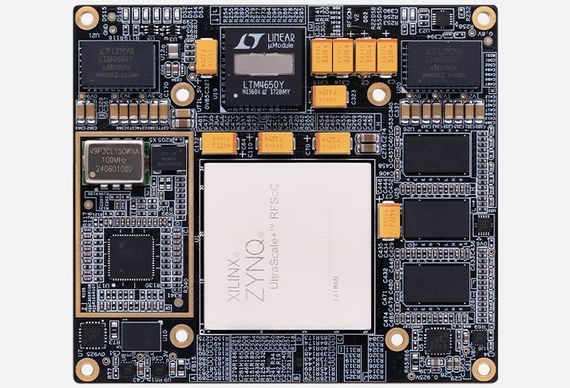

Module Features
Featuring the AMD/Xilinx Zynq UltraScale+ RFSoC XCZU47DR-2FFVE1156I
* We have Zynq UltraScale+ RFSoC development boards AXW47 that uses this Zynq UltraScale+ RFSoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
Alinx Electronic Limited
Alinx ACW47 SoM with AMD Zynq US+ RFSoC XCZU47DR
The ACW47 System-on-Module (SoM) integrates AMD/Xilinx Zynq UltraScale+ RFSoC XCZU47DR with high-speed DDR4 SDRAM, dual parallel 1Gbit Quad-SPI Flash, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.
Item number VAR-827003376
Manufacturer Product Number: ACW47
Taric/custom code: 8471800000
Product dispatched from Riedlingen, Germany
